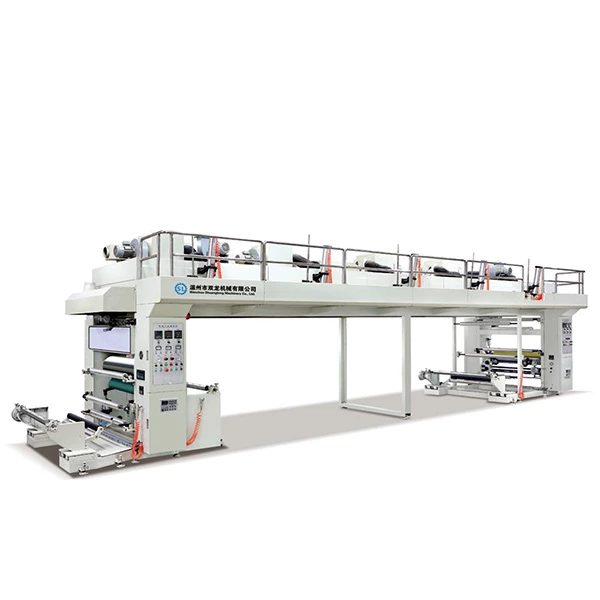

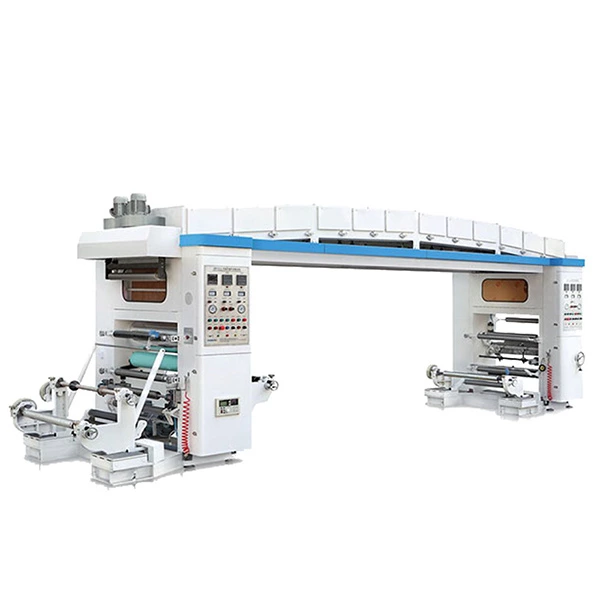

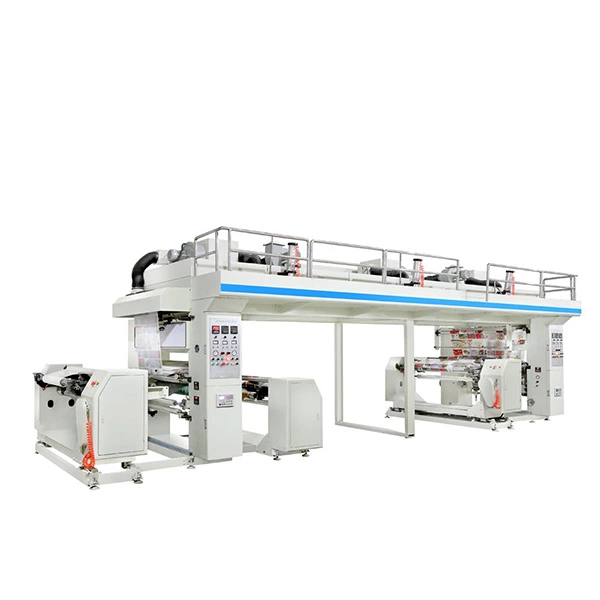

Dry Laminating Machine

Contact Now

Product Application

This machine is suitable for BOPP, PET, CPP, PVCD, Al-plated film, Al-tissue and laminating film and paper with the same properties. It’s mechanical speed is 80m/min.

Product Features

  1. The glue coating and laminating motor adopts double variable frequency synchronous speed regulating.
  2. The bridge-type three-segment drying tunnel heating with three section automatic temperature control.
  3. Gluing and laminating adopt pneumatic pressing rollers.
  4. Rubber-plated device: The anilox rollers control the amount of ink scrapping by scrapers. While the rubber roller adopts dual air cylinder to increase the pressure while the pressure can be adjusted freely. It is also equipped with device that the rubber-plated film can lift automatically while stopping the machine.
  5. Material-feeding device: Group 1 and 2 material-feeding devices adopt photoelectric edge-correcting device while the material feeding is controlled by manual tension. The material-feeding devices of laminating film adopt photoelectric edge correcting device and manual tension to control.
  6. Laminating hor drum and pressing roller device: Laminating hot drum and pressing roller device are heated through the hot oil to make the temperature of the heat beat average and to save electricity. Pressing roller is controlled by dual air cylinder, while the pressure can be adjusted freely.

Technical Parameters

Model  SLFH-A-800  SLFH-A-1000  SLFH-A-1200
Max Laminating width 800mm 1000mm 1200mm
Max Web Width 820mm 1020mm 1220mm
Max Laminating Speed  80m/min
Max Dia of Material  ф600mm
Internal Dia of Roll Core  ф76mm ( ф156mm 可选)
Length of Oven 6000mm
Max adjustable temp of heat beat 70℃-90℃
Max adjustable temp of dry oven 80℃
Heating Way 电加热(气加热、油加热可选)
Total Power 50Kw 55Kw 65Kw
Weight 5000KG 6500KG 6000KG
Dimension  L7000×W2000×H2800mm  L7000×W2200×H2800mm  L7000×W2400×H2800mm
